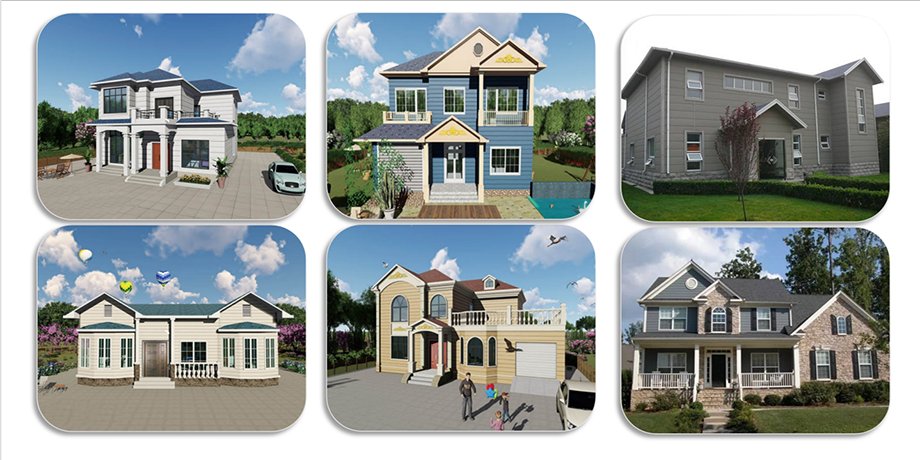

Tiny House Home Light Steel House Villa

Product Details:

product advantage：

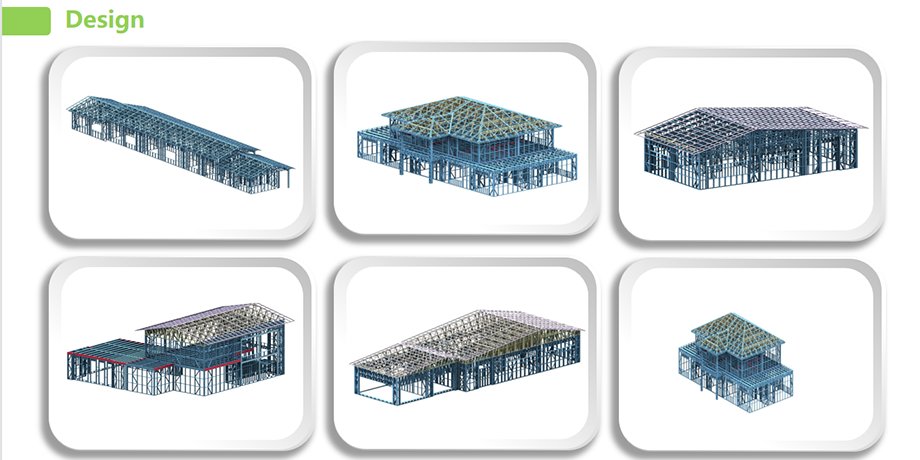

Light Gauge Steel Structure

1) Lifetime for structure: 100 years.

2) Earthquake resistance: mix more than 8 grades.

3) Wind resistance: max 60m/s.

4) Fire resistance: all the materials used can be fire resistance.

5) Snow resistance: max 2.9KN/m²as required

6) Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.

7) High acoustic insulation: 60db of exterior wall 40db of interior wall

8) Insect prevention: free from the damages by insects, such as white ants

9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean

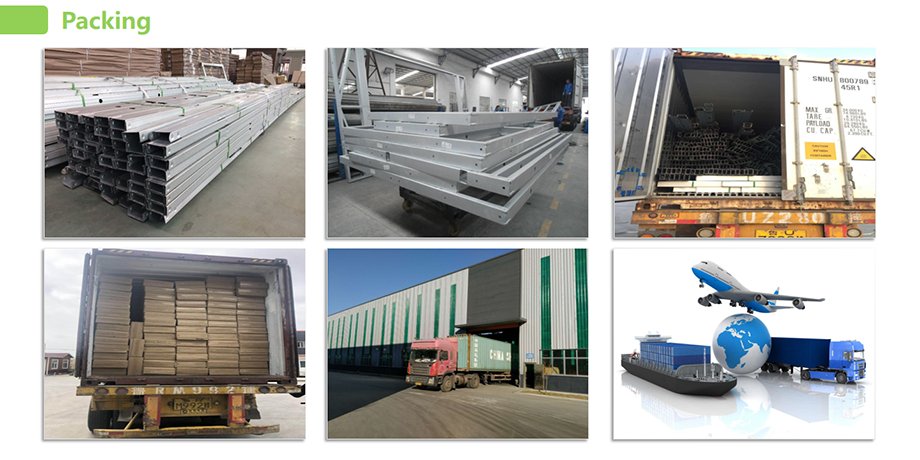

10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.

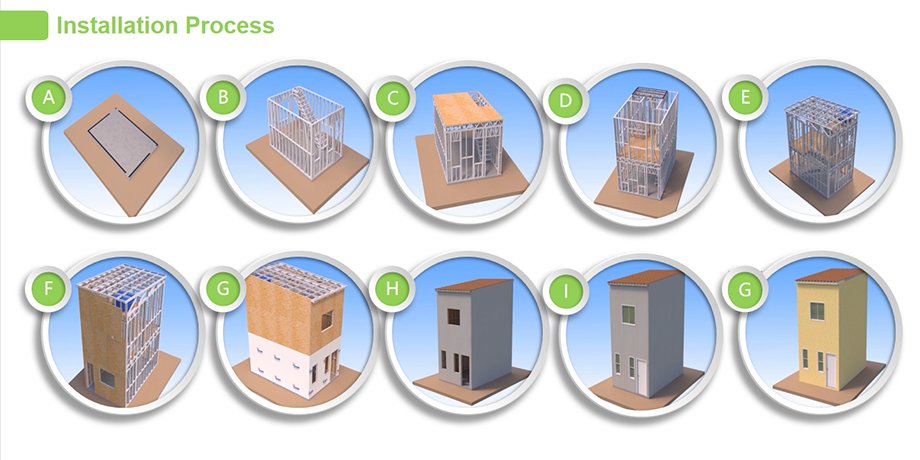

11) Installation: the average is one worker one day install one SQM.

12) Installation guide: dispatch engineer to guide on site.

Product Details

No.	Part	Name	Specification
1	Steel Structure System	Cold-formed thin wall steel/Q550	0.8-1.5mm thickness

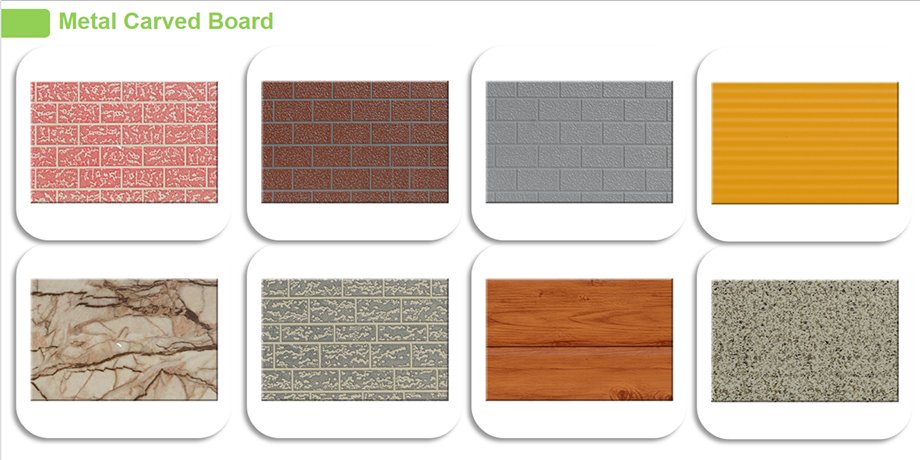

2	Wall System	Decoration Panel	Metal or PVC decoration panel
3		XPS panel(Grade B1)	122060040mm
4		Moistureproof paper	50m2/coil
5		OSB board	6mm/9mm/12mm/15mm, conform to EU EN300 standard.
6		Inner wall-- interior gypsum board	122024409mm
7	Roof System	Roof Tile	Asphalt tile/Resin tile + SBS + OSB + Glass Wool
8	Insulation System	Wall,roof ,floor and ceiling	90/100mm glass wool, XPS Panel
9	Doors & Windows	Entry door	Steel security door, can be customized
10		Interior door	Composite door, can be customized
11		Aluminum alloy door	Glass sliding door, can be customized
12		Window	Plastic steel or Aluminum Alloy Window, double- layer glass
13	Ceiling System	Gypsum Panel + insulation cotton	90/100mm glass wool

Company Profile

We are the largest prefabricated housing production base in Shandong. It is a large modern modular housing enterprise integrating professional design, manufacturing and construction. We have a complete set of production facilities such as independent molding workshop, automatic welding workshop, automatic color plate production workshop, assembly workshop, etc. According to the " One Belt One Road" proposed by the country , the international center is set up and the products are exported to Europe, Africa,Southeast Asia, North America, South America and the Middle East. Providing a safe, environmental friendly, smart and comfortable combined building space.
